Product No. | Nominal Capacity | Nominal Voltage | Discharge Rate | Dimensions (±5mm) | Weight (±5g) |
TAA13006S16ST | 1300mAh | 22.2V | 160C | 78×39.5×33mm | 203g |
TAA14806S16ST | 1480mAh | 22.2V | 160C | 77×37.5×36.5mm | 220g |
TAA14806S16SQ | 1480mAh | 22.2V | 160C | 69.5×42×36.5mm | 220g |
TAA16006S16ST | 1600mAh | 22.2V | 160C | 77×37.5×40mm | 240g |
TAA16006S16SQ | 1600mAh | 22.2V | 160C | 70×42×41mm | 240g |
●?Advanced Cell Chemistry
– Optimized electrolyte formulation yields higher watt-hours per gram, extending on-board flight time without adding weight.
●?Compact, Center-Balanced Design
– Increased volumetric energy density and tighter cell stacking improve weight distribution, enhancing stability during high-G rolls, flips, and freestyle maneuvers.

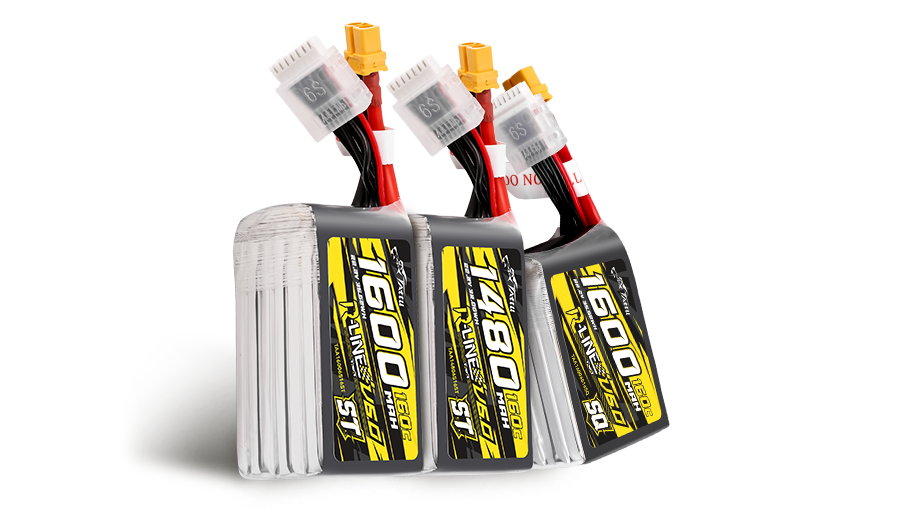

●?Dual Form Factors (ST & SQ)
– ST (Slim-Tall) and SQ (Short-Wide) versions let you tailor pack dimensions to your frame, ensuring clean stack clearance and straightforward mounting on everything from 3″ cinewhoops to 5″ race quads.
●?Reinforced Shell & Corners
– PET heat-seal, L-shaped aluminum sheet and aramid fiber reinforcement safeguard against abrasion, impacts, and elevated pack temperatures—built to endure the rigors of hard landings and high-load sorties.
●?High-C Stable Discharge
– 160C continuous output with ultra-low IR for instantaneous power delivery and rock-solid voltage under load—no voltage sag, no throttle lag.
●iMars D200 200W FPV battery charger for 1S-6S pouch cell batteries.
●iMars D300 300W FPV battery charger for 1S-6S pouch cell batteries.

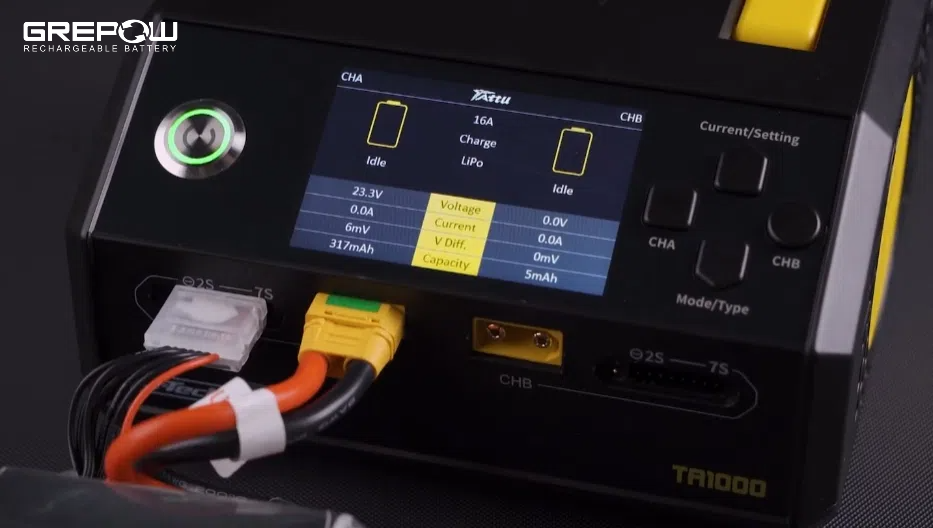

●Tattu TA1000 G-Tech drone battery charger for 1S-7S pouch cell batteries.
Discover more FPV / Drone Chargers: Lipo Battery Charger
●?1.6-2.5 Inch FPV Drone Battery
●?3-3.5 Inch FPV Drone Battery
●?7-7.5 Inch FPV Drone Battery
As a global leading lipo battery cell manufacturer, Grepow offers professional customization and OEM solutions for high discharge (up to 150C) FPV batteries, catering to your specific application requirements.
●?Cell Type: High Discharge Cell, High Voltage Cells, Low & High Temperature Cells
●?Cell Capacity: No Limit
●?Cycle Life : Up to 600 Cycles
●?Operating Temperature : -40℃ to 60℃ /-50℃ to 50℃
●?Battery Weight: Depends On Requirement
●?Battery Size: Depends On Requirement
●?Battery Connector, Label and Packaging: Depends On Requirement
